Features:

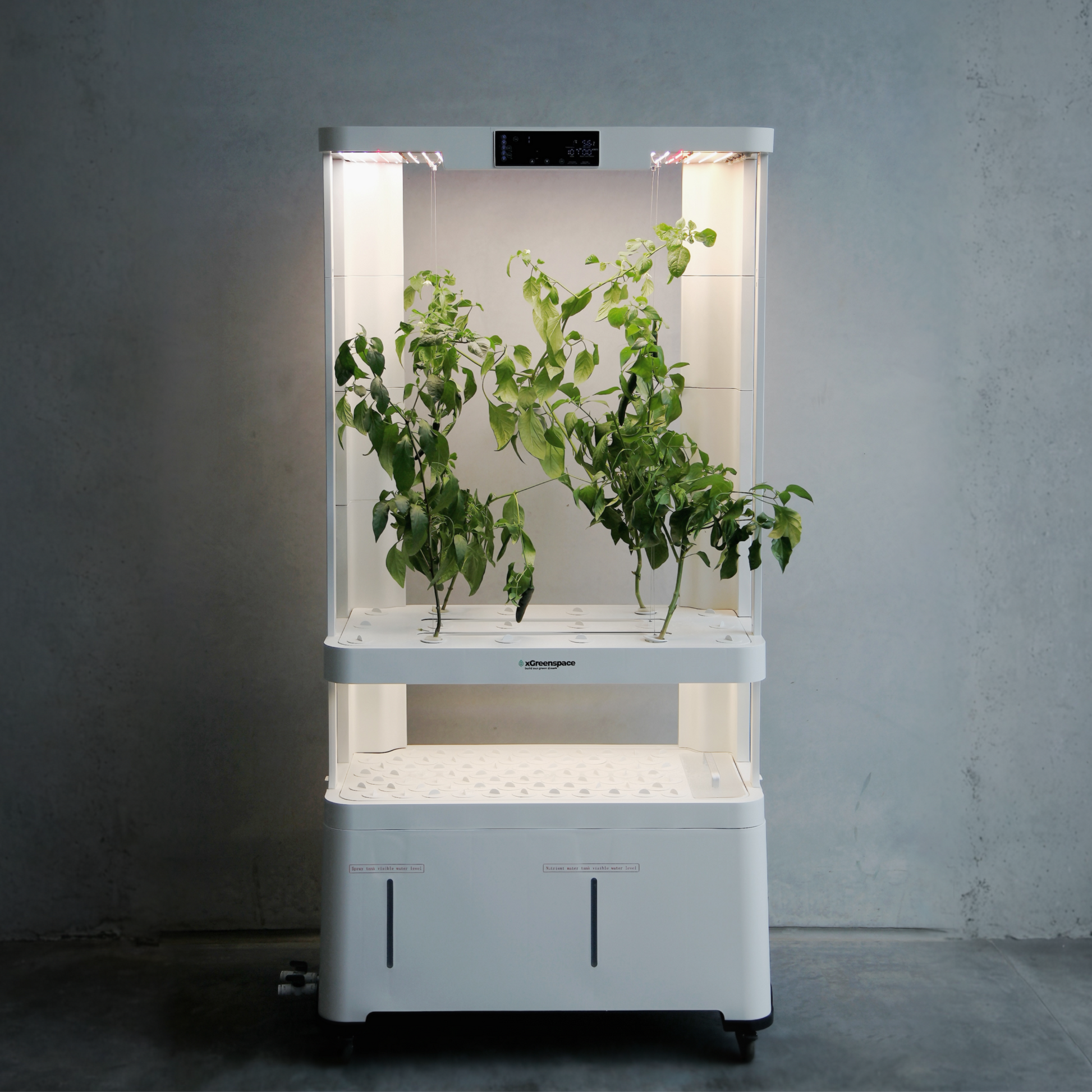

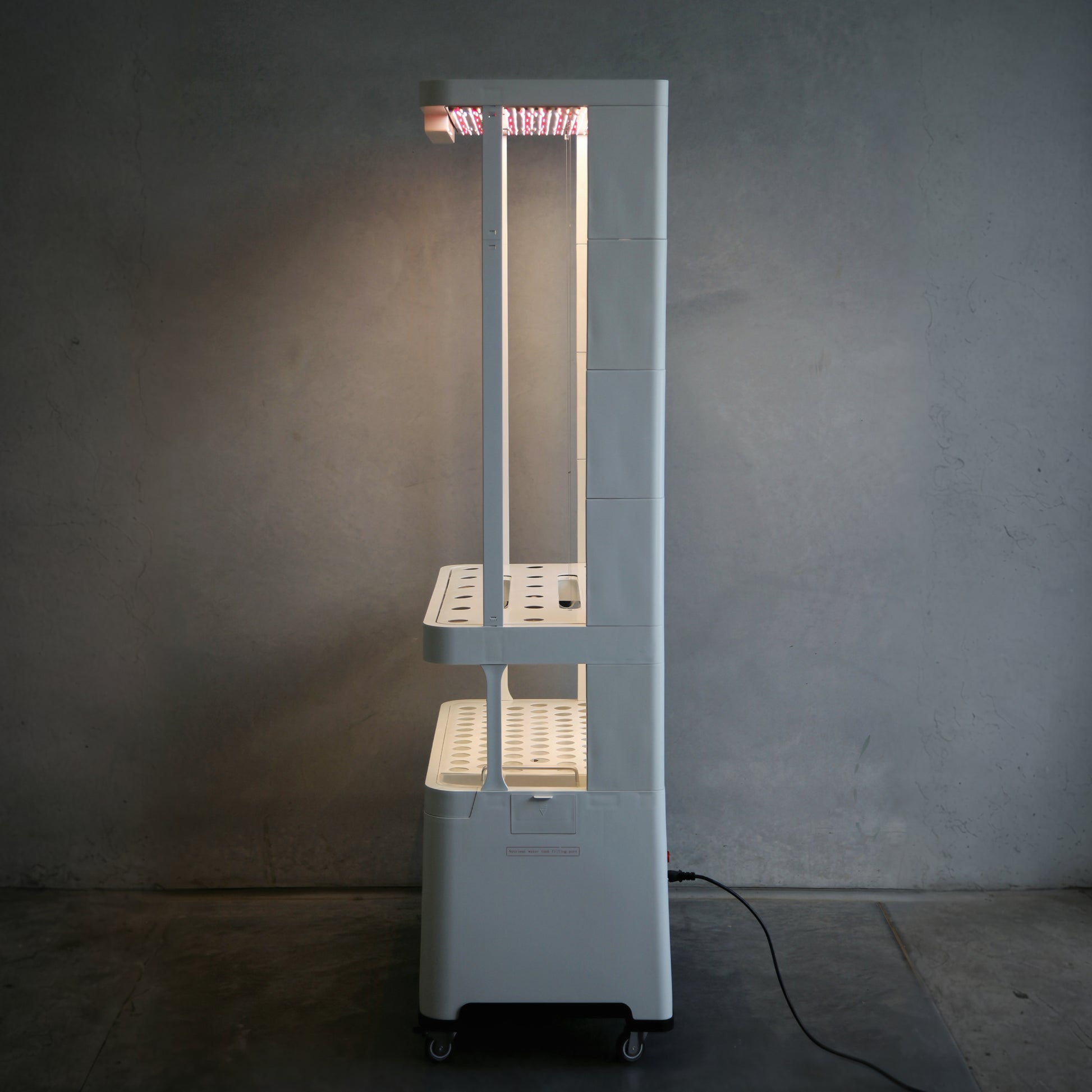

• Compact 3-Tier Design: Stands 1616mm tall and 811mm wide, making it ideal for indoor setups with limited space.
• Independent Tier Management: Each layer is individually controlled, allowing for versatile growing options.
• Water Circulation & Auto Replenishment: Built-in smart irrigation reduces manual maintenance and increases efficiency.
• Energy-Saving LED Light Technology: Tailored lighting spectrum supports the healthy growth of medium-sized plants.
• Easy Installation & Operation: Modular design simplifies setup and daily use.

Applications:

• Home Kitchens: Grow fresh herbs or small vegetables for cooking.
• Office Spaces: Add greenery and life to work environments.

Specifications:

-Length 811mm * Width 433mm * Height 1805mm, 1 set/unit

-Food grade PP

Packing size:

A Box: Length 835mm * width 455mm * height 500mm

B Box: Length 870mm * width 485mm * height 550mm

Planting Layer:

-Dimension 800mm * 420mm * 100mm , 2 units

-Planting space 90mm * 90mm, plant quantity: 18 plants/layer

-Material: food grade PP injection moulding

-Round planting pit, equipped with special planting baskets for plants standing

Seedling layer:

-Dimension 800mm * 420mm * 100mm, 1 piece/unit

-Planting space 20mm * 20mm, planting quantity: 76 plants/layer

-Material: food grade PP injection moulding

-Round planting pit, equipped with special planting baskets for seedling

Planting basket:

-Inner diameter 32mm, outer diameter 45mm, height 30mm, 160 pcs/set

-Material: food grade PP

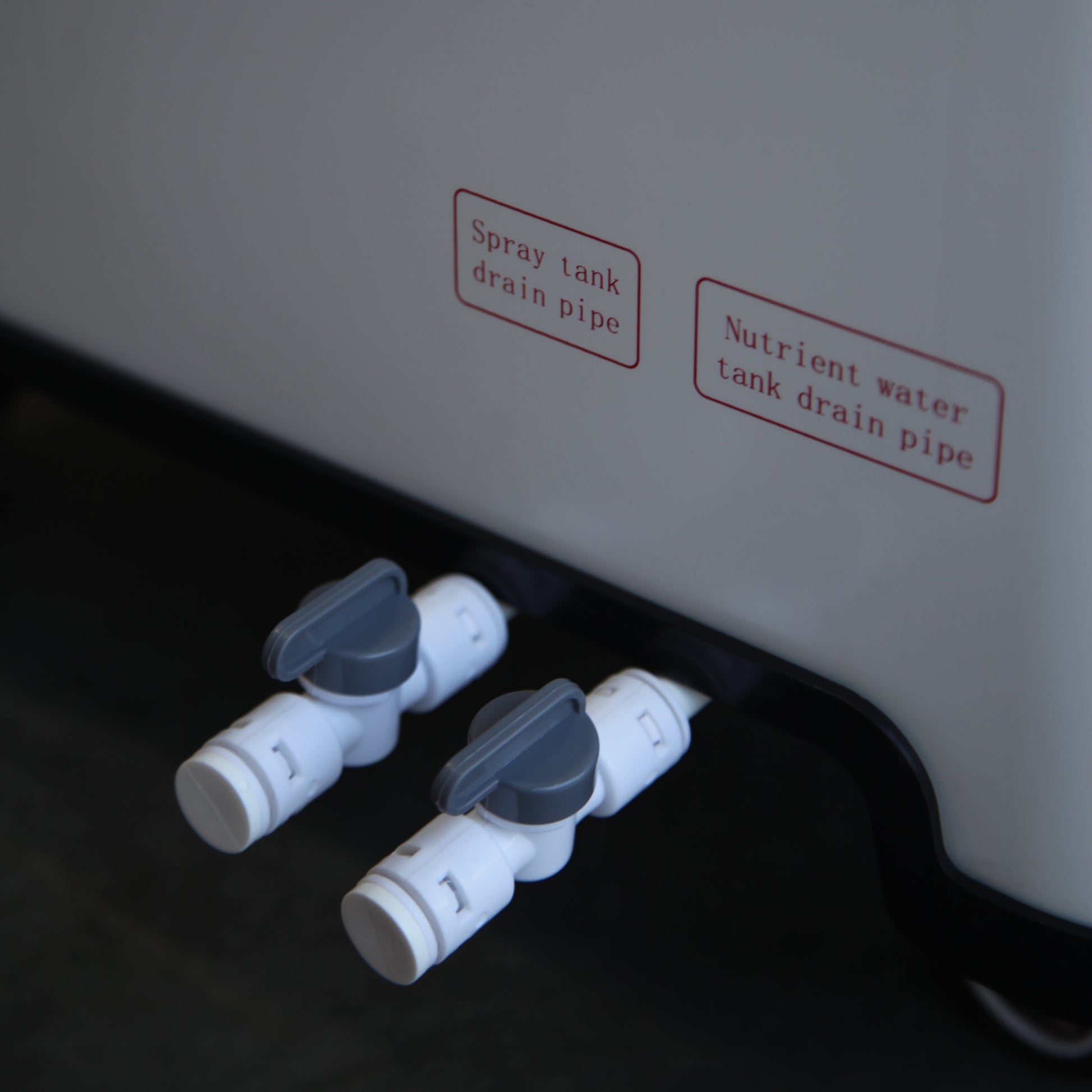

Water Tank

-Dimension 811mm * 433mm * 400mm, volume 34L nutrient solution + 9L spray tank

planting media

-size 25mm x 25mm x 25mm, 400pcs/set

Nutrient solution

-160g/set, A & B bottle each set, 6 sets/unit

Water pump

-size 80mm x 50mm x 48mm, 1 pc/unit

-rated voltage DC24V, nutrient solution pump rated power 18W, spray pump power 45W

-max reach 2M, max flow 400L/H

Power cord

-1.5m Australian standard

LED grow lights

-Lamp spec: DC12V, 12W/Bar, 18Bars/unit, temperature -10°C to 40°C, working life 100,000 hours

-Fill light spectrum: full spectrum, 1:1 simulated sunlight

-Light colour temperature: 4000K, display index Ra>=98

constant power supply

-DC24V350W adapter power supply

-silent fan with 400W

-inner metal skeleton, well thermal design

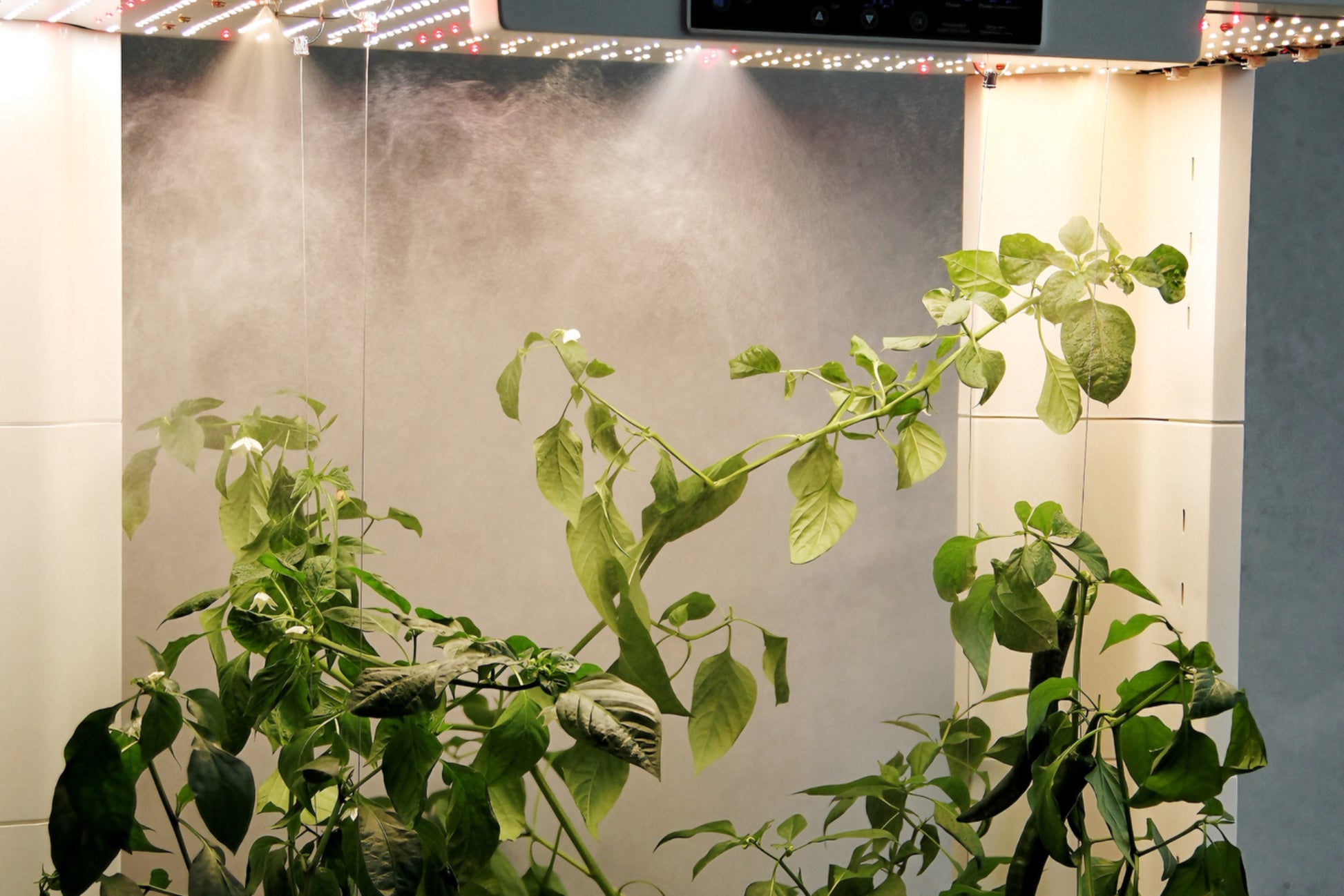

*/ONLY Premium version with Spray function/*
